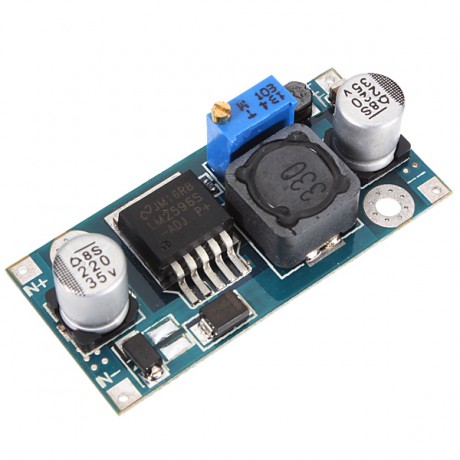

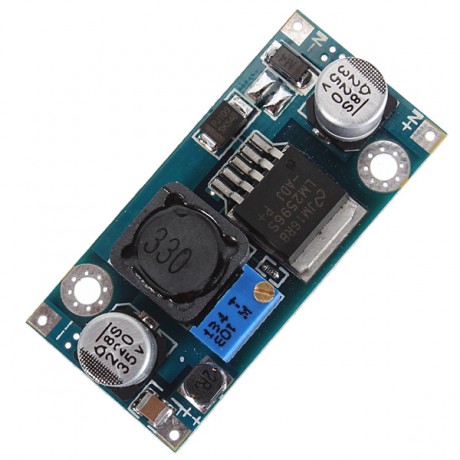

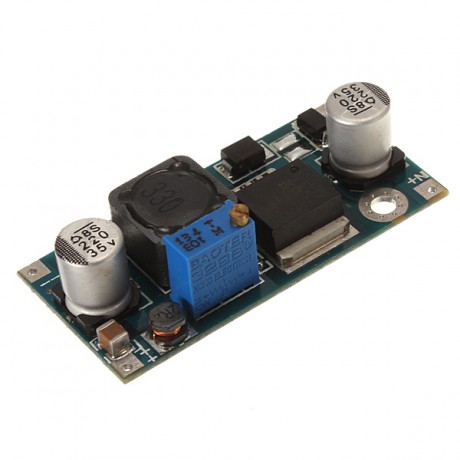

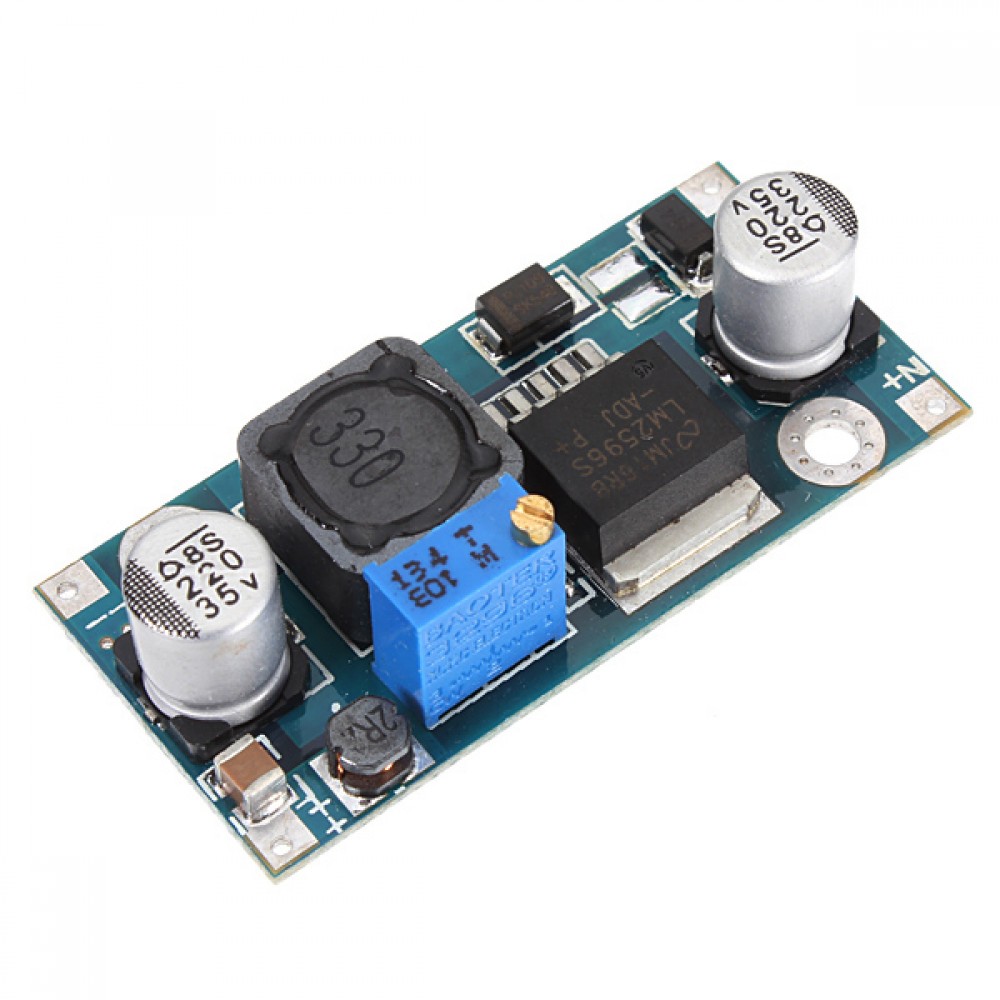

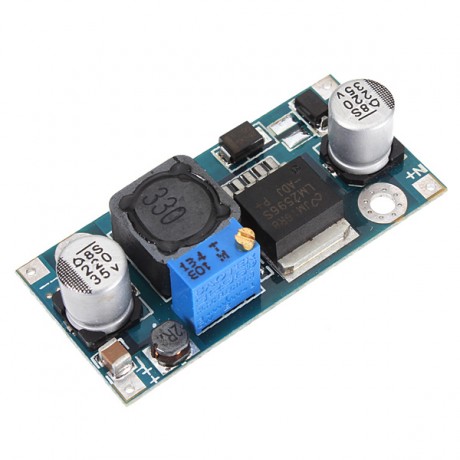

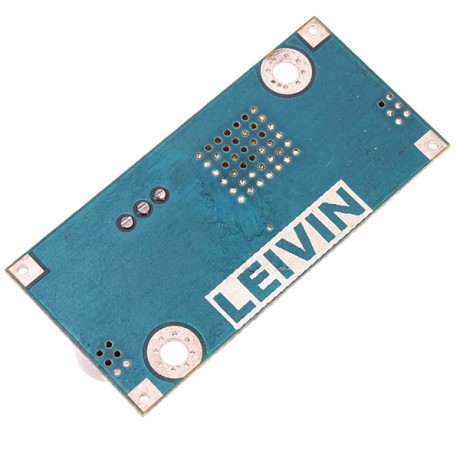

LM2596 DC-DC Verstellbar Step-Down-Schaltregler Power Supply Module
Description: Item Name: Input voltage:4.5-35V Output voltage:1.5-35V(Adjustable) Output current: Rated current is 2A,maximum 3A(Additional heatsink is required)
Features: Conversion Efficiency: Up to 92 (output voltage higher, the higher the efficiency) Switching Frequency: 150KHz Rectifier: Non-Synchronous Rectification Module Properties: Non-isolated step-down module (buck) Short Circuit Protection: Current limiting, since the recovery Operating Temperature: Industrial grade (-40 to +85 ) (output power 10W or less) Full load Temperature rise: 40 Load Regulation: ± 0.5 Voltage Regulation: ± 2.5 Dynamic Response speed: 5 200uS Dimension: 43*20*14mm (L*W*H)
